Technical data Biber 78 Z / ZK
Maximum wood diameter 60 cm
Max. woodØ with blade system (hard wood) 45 cm
In-feed width 84 cm
Chipping system drum chipper
No. of blades 6 or 12
Chain belt in-feed length to roller 2,1 m
Clearing system
Loading crane - / ●
Power required via PTO shaft from110 kW
Rotational speed of PTO shaft 1000 rpm
Standard tyres 445/65 R 22,5
Optional tyres 600/50 R 22,5
Transport dimensions l x w x h (m) * 6,00 x 2,55 x 3,90
Weight ca. (kg) * 10.000 / 12.500

* Depending on the fittings ● Standard model ○ Optional extra available at extra cost

The new model combines all innovations in the chipper production.

Biber 78 is the newest model of the new chipper generation. Equipped with the newest chipping technology, it produces perfect fine wood chips, but also coarse chips.

In the medium size segment, it exceeds all expectations concerning power and quality of wood chips. It is also ideal for eliminating scattered woodpiles in an effective and economic way.

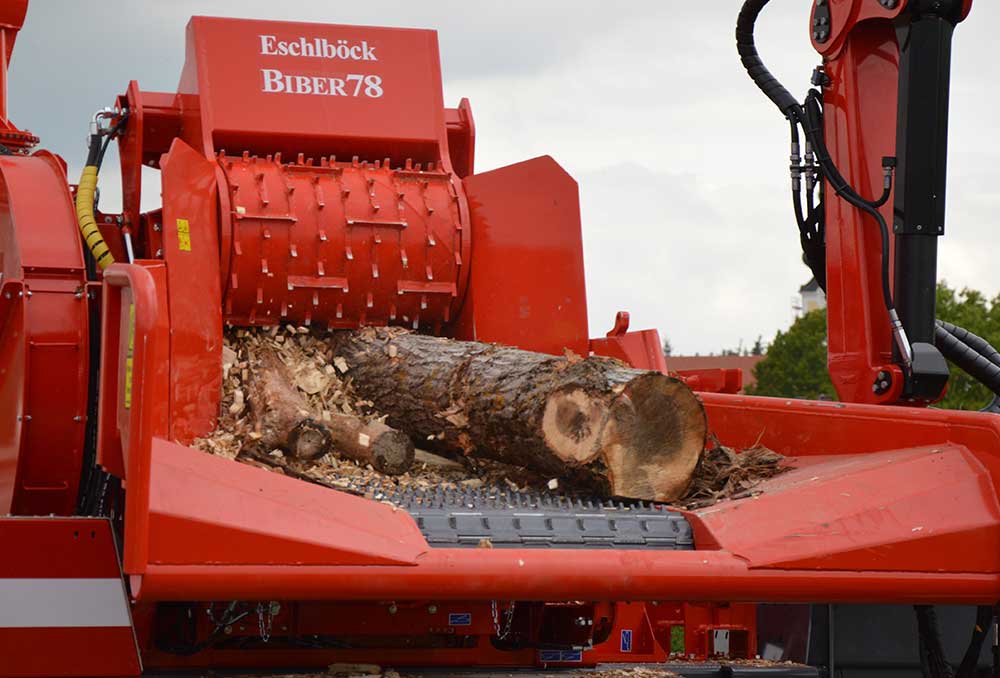

The infeed system works aggressively when processing brushwood as well as round timber up to 60 cm in diameter.

Quality in detail

The new chipping rotor for fine and coarse wood chips is equipped with 12 fast-adjustable blades, mounted as half or full set.

The safeguard system for blade fixing reduces damages to the mechanism caused by foreign objects.

The 1.3 m² large, fully exchangeable screen and the 1.4 m in diameter large blower with reliable wear elements realize a smooth processing of the material and uniform wood chips.
