| Technical Data |
Biber 6 Dreipunkt |
Biber 6 Fahrachse |
Biber 6 Motor |
| Chipping system |
Drum chipper |
Drum chipper |
Drum chipper |
| Feed chute |
32 x 49 cm |
32 x 49 cm |
32 x 49 cm |
| Chain belt in-feed |
0,5 m |
0,5 m |
0,5 m |
| No. of knives |
4 Stück |
4 Stück |
4 Stück |
| Interchangeable screens for chip lengths of |
2, 3, 4 oder 5 cm |
2, 3, 4 oder 5 cm |
2, 3, 4 oder 5 cm |
| Electronic feed control incl. operating hours counter |
● |
● |
● |
| Drive power p.t.o. shaft |
ab 44 bis 100 kW |
- |
| P.t.o shaft rotation speed |
540 U/min |
- |
| Motorleistung |
- |
- |
46,1 kW Hatz-Silent-Diesel |
| Fahrachse |
- |
10 (25) km/h |
80 km/h Tandemachse |
| Dimensions l x w x h (m) * |
2,35 x 2,82 x 3,55 /
2,35 x 2,00 x 2,78 |
3,40 x 2,60 x 3,50 /
3,40 x 1,85 x 2,70 |
4,75 x 2,98 x 3,83 /
4,75 x 2,14 x 3,06 |
| Weight (kg) ca. * |
2.450 |
2.650 |
3.500 |
* Depending on the fittings ● Standard model

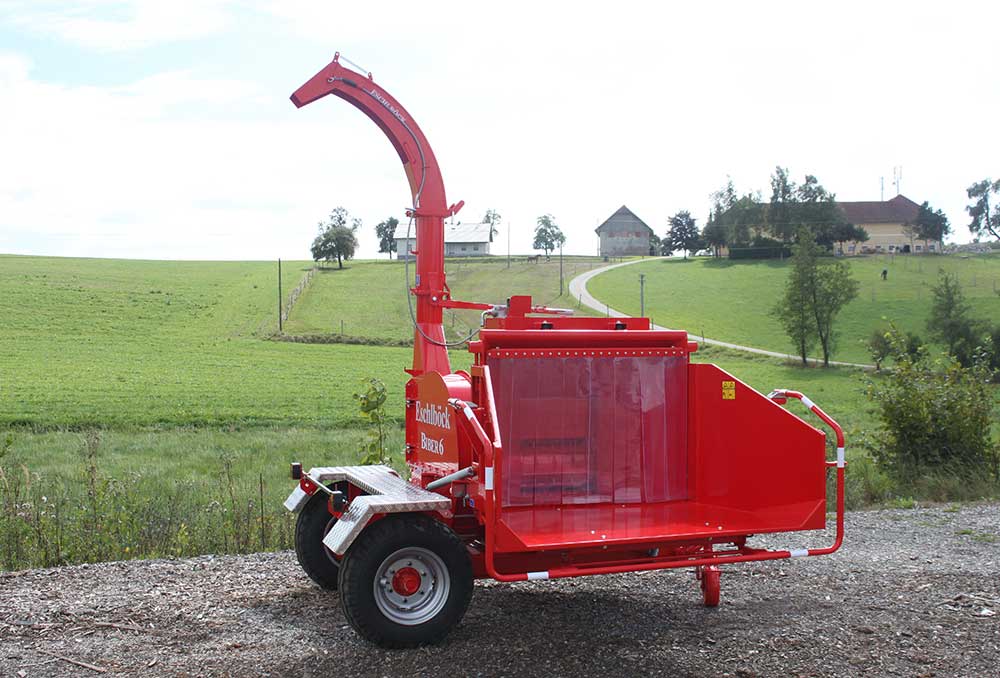

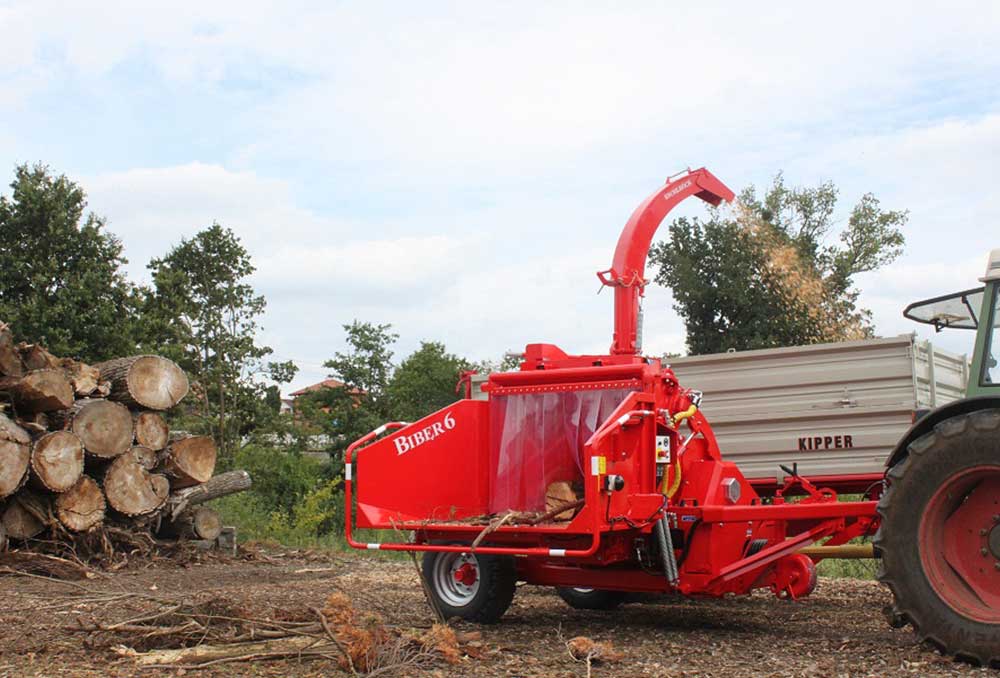

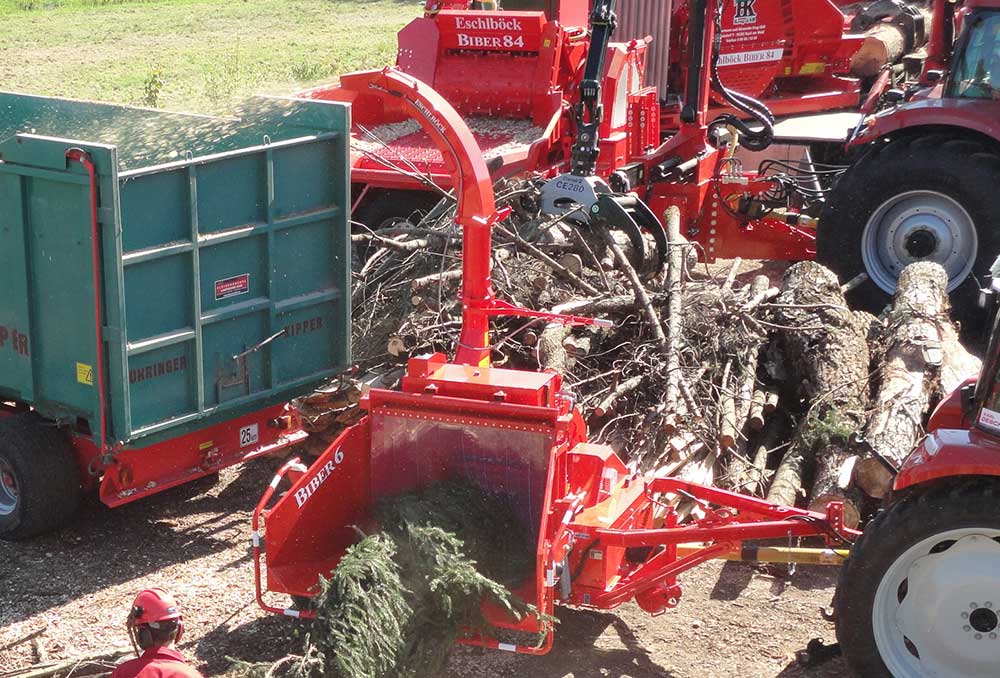

The product range of Eschlböck is widening: The “Biber 6″, a new chipper smaller than the Biber 7, now opens the world of drum-chippers. This machine combines many advantages of the heavy-chippers with compact external dimensions. And also important: Powered by tractors with a drive horse power between 80-100 HP, the “Biber 6″ runs smoothly.
The new developed chipping rotor with the 4 spiral-arranged blades is very easy to maintain. Due to the new technology the “Biber 6″ produces high-qualitative wood chips, as all Bibers from Eschlböck do, i. e. exact wood chips with little wood dust.
With its’ 49 cm wide infeed for a wood diameter up to 32 cm and the robust feeding belt the new Biber 6 is perfect for cultivation work in garden and landscape architecture. The new series is equipped with the safety devices for hand loading.
